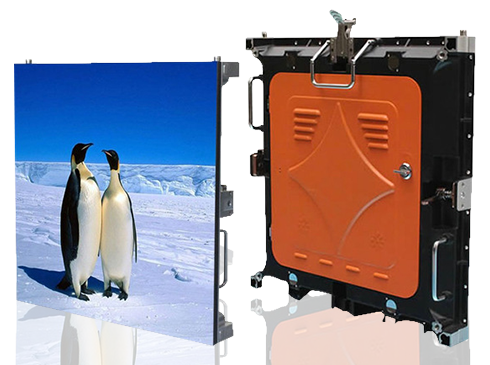

P8 Outdoor LED Display
With 8mm pixel pitch and 1200nit ultra-high brightness, Ösel’s P8 LED display for outdoor environments delivers superior picture quality with unmatched performance. The module resolution is 32×16, while the module size is 256mmx128mm. Delivering 5,000 hours of nonstop performance with a total lifespan of 100,000 hours, Ösel’s P8 outdoor LED display has a superb refresh rate of 1000Hz. The ultra-wide 120 degree – 160 degree viewing angle ensures that your messaging gets maximum eyeballs even under bright sunlight.
Applications
High-definition pictures
Seamless splicing
Quick assembling and teardown
High level of protection
Low power consumption
Zero noise
Broad vision
Quality cabinets
Intelligent control …and much more!
| Specification | Details |
|---|---|
| Pixel pitch | 8mm |
| Lamp | SMD3535 |
| Pixel Density Dots/m2 | 15625 |
| Module resolution | 32*16 |
| Module size | 256mm*128mm |
| Scan mode | Static current 1/4Scan |
| Brightness | ≧ 7000nits |
| Cabinet size | 768mm*768mm |
| IP Rate | IP65 |
| Color temperature | 3200K-9300K |
| View Angle V/H | (120degree-160degree) |
| Signal Processing | 10bits or 16bits |
| Control Distance | CAT5 cable< 100m ,Multimode optic fiber <500m, Singlemode optic fiber >2km |
| Refresh frequency | 60 HZ |
| Refresh Rate | >1000HZ |
| MTBF | >5000Hours |
| Lifespan | 100000Hours |
| Working Temperature | Working Temerature :-35℃-60℃ ， ,Storage Temperature:-40℃–75 ℃ |
| M2 Power consumption (MAX) | <800W |
| M2 Power consumption (AVE) | <400W |
| Video display function | Synchron display kinds of text, graphics, pictures, signs, flashes, and any signal from TV, VCD, DVD, Camera, and scanner and so on, support PAL, NTSC. |
